PU 圆带 & 三角带

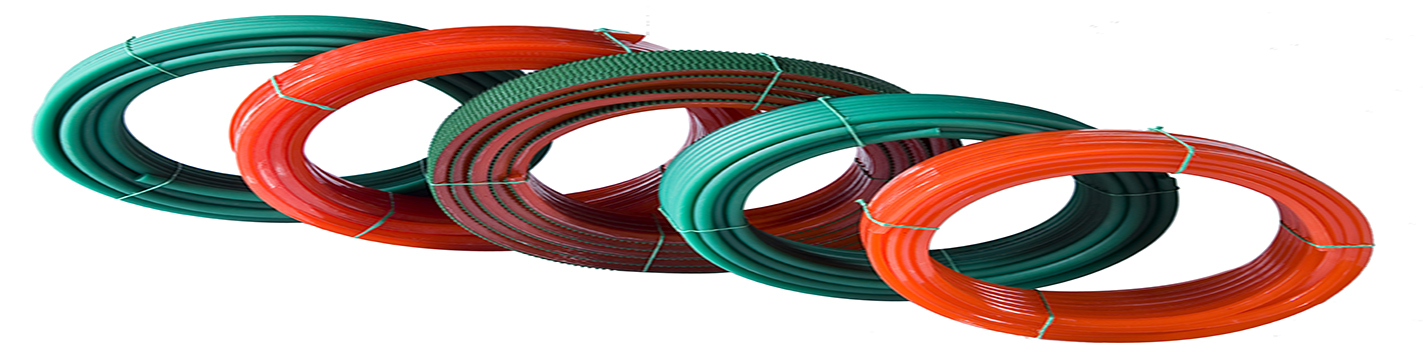

Polyurethane belt are available with green rough, red smooth and reinforced. The diameter range from 2mm to 22mm. Customized is available.

Round belt: smooth / rough
Appearance	Type	D (mm)	Pretension (%)	Standard packing (m/roll)
	ψ2S	2	1.5 ~ 3	400
	ψ3S/R	3		400
	ψ4S/R	4		200
	ψ5S/R	5		200
	ψ6S/R	6		200
	ψ7S/R	7		100
	ψ8S/R	8		100
	ψ10S/R	10		50
	ψ12S/R	12		30
	ψ15S/R	15		30
	ψ18S/R	18		30
	ψ22S/R	22		30

Round belt: smooth / rough reinforced
Appearance	Type	D (mm)	Pretension (%)	Standard packing (m/roll)
	ψ10S/R	10	1.5 ~ 3	50
	ψ12S/R	12		30
	ψ15S/R	15		30
	ψ18S/R	18		30

Tolerances of round belts

diameter < 15mm: ±0.3mm

diameter > 15mm: ±0.5mm

Standard V belt
Appearance	Type	D (mm)	H (mm)	Pretension (%)	Standard packing (m/roll)
	A-13/V	13	8	1.5 ~ 3	50
	B-17/V	17	11		30
	C-22/V	22	14		30

Standard reinforced V belt
Appearance	Type	D (mm)	H (mm)	Pretension (%)	Standard packing (m/roll)
	A-13/V	13	8	0.5 ~ 1	50
	B-17/V	17	11		30
	C-22/V	22	14		30

Special-top V belt
Appearance	Type	D (mm)	H (mm)	Pretension (%)	Standard packing (m/roll)
	B-17/R1	17	19	1.5 ~ 3	30
	C-22/R1	22	23.5		30

Reinforced special ridge-top V belt
Appearance	Type	D (mm)	H (mm)	Pretension (%)	Standard packing (m/roll)
	B-17R1R	17	19	0.5 ~ 1	30
	C-22R1R	22	23.5		30

Ridge V belt
Appearance	Type	D (mm)	H (mm)	Pretension (%)	Standard packing (m/roll)
	A-13/R	13	17	1.5 ~ 3	50
	B-17/R	17	22		30
	C-22/R	22	28		30

Reinforced ridge-top V belt
Appearance	Type	D (mm)	H (mm)	Pretension (%)	Standard packing (m/roll)
	A-13/RR	13	17	0.5 ~ 1	50
	B-17/RR	17	22		30
	C-22/RR	22	28		30

Double section V belt
Appearance	Type	D (mm)	H (mm)	Pretension (%)	Standard packing (m/roll)
	A-13/D	13	10	1.5 ~ 3	50
	B-17/D	17	14		30
	C-22/D	22	17		30

Tolerances of V belts

Width: ±0.5mm

Height: ±0.5mm

Standard hardness: 85 shoreA
